Hyperdimensional Multimedia Perception and Frontier Security

Faculty of Applied Sciences, Macao Polytechnic University

LungScope: An Intelligent Embedded System With a Lightweight Model for Real-Time Lung Sound Analysis


Journal article


Fan Wang, Xiaochen Yuan, Guoheng Huang, Chan-Tong Lam, Sio-Kei Im
IEEE Transactions on Instrumentation and Measurement, vol. 74, 2025, pp. 1-12


Link
Cite

Cite

APA   Click to copy
Wang, F., Yuan, X., Huang, G., Lam, C.-T., & Im, S.-K. (2025). LungScope: An Intelligent Embedded System With a Lightweight Model for Real-Time Lung Sound Analysis. IEEE Transactions on Instrumentation and Measurement, 74, 1–12. https://doi.org/10.1109/TIM.2025.3604924


Chicago/Turabian   Click to copy
Wang, Fan, Xiaochen Yuan, Guoheng Huang, Chan-Tong Lam, and Sio-Kei Im. “LungScope: An Intelligent Embedded System With a Lightweight Model for Real-Time Lung Sound Analysis.” IEEE Transactions on Instrumentation and Measurement 74 (2025): 1–12.


MLA   Click to copy
Wang, Fan, et al. “LungScope: An Intelligent Embedded System With a Lightweight Model for Real-Time Lung Sound Analysis.” IEEE Transactions on Instrumentation and Measurement, vol. 74, 2025, pp. 1–12, doi:10.1109/TIM.2025.3604924.


BibTeX   Click to copy

@article{wang2025a,
  title = {LungScope: An Intelligent Embedded System With a Lightweight Model for Real-Time Lung Sound Analysis},
  year = {2025},
  journal = {IEEE Transactions on Instrumentation and Measurement},
  pages = {1-12},
  volume = {74},
  doi = {10.1109/TIM.2025.3604924},
  author = {Wang, Fan and Yuan, Xiaochen and Huang, Guoheng and Lam, Chan-Tong and Im, Sio-Kei}
}

[Picture]

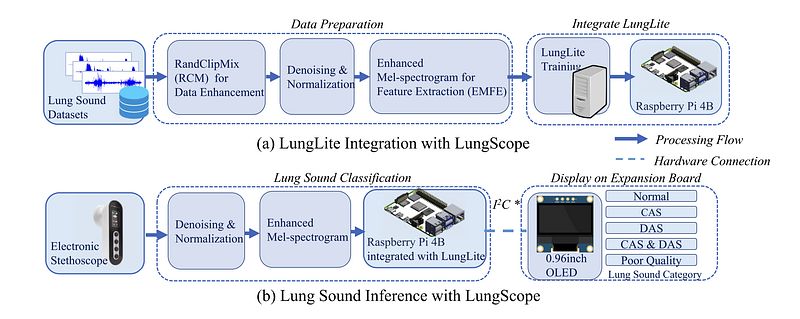

Pipeline of the lung sound classification system.

Abstract: Lung auscultation is crucial for early respiratory disease diagnosis. However, limited resources hinder accurate and timely assessment in many regions. In this article, we present LungScope, an intelligent embedded system designed for realtime lung sound classification. We first introduce LungLite, a lightweight classification model optimized based on our previous work, targeting deployment in resource-constrained environments. The architecture adopts redesigned LungLite blocks to reduce computational complexity while maintaining accuracy. In addition, it integrates advanced attention modules, such as SimAM and CBAM, to further enhance classification accuracy. LungLite was evaluated on the SPRSound dataset, achieving SC scores of 0.7008 for the three-class classification task and 0.5657 for the five-class classification task, with only 2.984M parameters and 0.494G FLOPs. LungLite is further integrated into LungScope by deploying it on a Raspberry Pi 4 Model B (Pi4B) with a custom-designed expansion circuit board. This integration enables optimized control, real-time lung sound acquisition, classification, and result display. The proposed portable embedded system provides an effective solution for real-time lung sound classification, supporting the basic service of healthcare in resource-limited urban settings.
